加热器

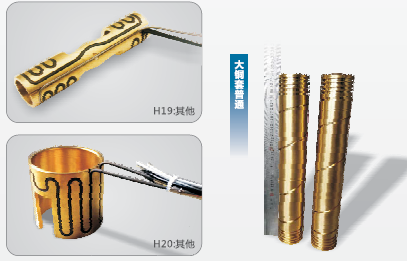

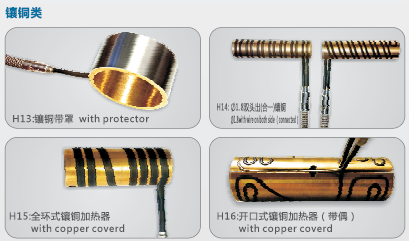

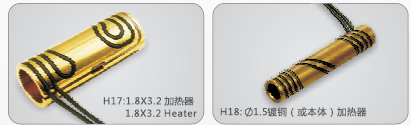

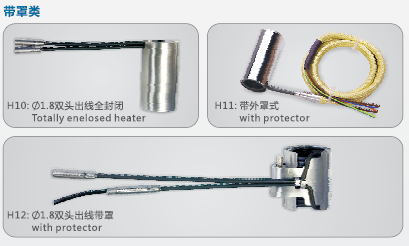

热流道加热器
加热器的作用
1、用于塑胶行业的射出部件作高温加热用，本品采用封闭式不锈钢制造，有效防止漏胶而损坏，且温度绝对是使用单位所理想的，本品使用寿命长，且不易烧坏。
2、电热圈性能优点：本产品具有安装灵便，传热快，绝缘良好，制作不受型号和规格大小的限制等优点。
3、外壳材料：CrNi钢。
◆内部绝缘材料：强力压缩氧化镁。
◆发热线制成之后经回火处理，可绕成各种形状。
◆充分加热接触面积，最高效的热传导。
◆绝热效果好，较长的使用寿命。
◆抗机械冲击力强。
◆品质好，热惯性小。
◆工作温度可升高到700摄氏度（1300华氏度）。
◆可弯曲成各种要求的形状。可选择内置式热电偶（J型和K型）。
◆10款不同的截面形状，可满足各种的需要。
怡圣热流道主营产品包括:热流道整套系统，喷嘴、阀式喷嘴、分流板、温控箱等。产品规格齐全、质量稳定可靠、使用寿命长、互换性好、也可根据客户的特定需求提供模流分析、设计、安装、调试。
怡圣热流道前身博维是一家专业从事塑胶模具热流道系统研发，生产、营销、售后服务的专业制造企业，积累了丰富的专业经验。
“以诚待客,以信言商”：是怡恺的经营理念：以丰富的产品、专业的经验、过硬的质量、低廉的价格、完善的服务为宗旨。我公司的方针：以质为本、勤奋开拓、一流质量、永远昌盛。为了进一步开拓国内外市场、创建一流公司,制造卓越产品。公司坚持“以客户为基础,以质量求生存、以品种求发展、以管理求效益、以服务求市场的方针和合理的价格赢得市场、客户。
突出特点
1,、绝缘阻值高，经久耐用。
2、导热绝缘材质分布均匀，密度合理，加热后内径不松弛。
热流道加热圈技术参数
|
产品型号/截面0 |
H:1.8×3.2/2.2×4.2/2.7×4.5/3.0×3.0 |
|
外形 |
扁方圆 |
|
外层材料 |
不锈钢304 316 321 |
|
内层材料 |
镍铬丝（CR20NI80）/高温氧化镁粉（海水镁） |
|
加热元件表面温度 |
700℃ |
|
电压 |
230V |
|
功率误差（未加热） |
+5%-10% |
|
高压温度 |
600V |
|
绝缘电阻（未加热）1000V |
≥100 MΩ |
|
泄漏电流（未加热） |
253V≤0.5mA |
|
长度误差 |
±0.5% |
|
不加热误差 |
±10mm |

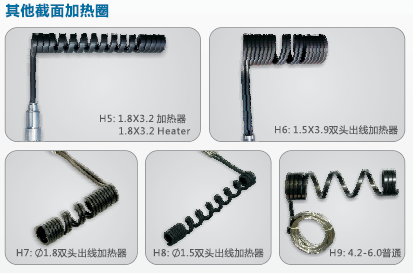

主要加热圈截面规格
|
编号 |
截面（mm) |
|
H1 |
2.2*4.2 |
|
H2 |
2.7*4.5 |
|
H3 |
3.0*3.0 |
|
H4 |
3.5*3.5 |
|
H5 |
1.8*3.2 |
|
编号 |
截面（mm) |
|
H6 |
1.5*3.9 |
|
H7 |
ø1.8 |
|
H8 |
ø1.5 |
|
H9 |
4.2*6.0 |
|
|
|

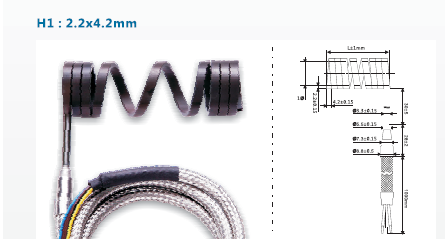

H1:2.2*4.2mm的规格参数：
|
总长 mm |
加热长度 mm |
不加热长度 mm |
功率 （230V） |
|
295 |
250 |
45 |
200W |
|
365 |
320 |
45 |
250W |
|
415 |
370 |
45 |
300W |
|
495 |
450 |
45 |
350W |
|
545 |
500 |
45 |
400W |
|
645 |
600 |
45 |
450W |
|
695 |
650 |
45 |
500W |
|
745 |
700 |
45 |
550W |
|
总长 mm |
加热长度 mm |
不加热长度 mm |
功率 （230V） |
|
795 |
750 |
45 |
600w |
|
945 |
900 |
45 |
700W |
|
1075 |
1030 |
45 |
800W |
|
1245 |
1200 |
45 |
900W |
|
1825 |
1780 |
45 |
1000W |
|
1845 |
1800 |
45 |
1100W |
|
1995 |
1950 |
45 |
1200W |
|
|
|
|
|
Technical Date

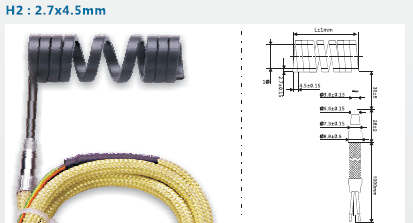

H2: 2.7*4.5mm的规格参数
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
295 |
250 |
45 |
200W |
|
345 |
300 |
45 |
250W |
|
395 |
350 |
45 |
300W |
|
475 |
430 |
45 |
350W |
|
545 |
500 |
45 |
400W |
|
605 |
560 |
45 |
450W |
|
675 |
630 |
45 |
500W |
|
735 |
690 |
45 |
550W |
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
795 |
750 |
45 |
600W |
|
915 |
870 |
45 |
700W |
|
1045 |
1000 |
45 |
800W |
|
1175 |
1130 |
45 |
900W |
|
1295 |
1250 |
45 |
1000W |
|
1845 |
1800 |
45 |
1100W |
|
1995 |
1950 |
45 |
1200W |
|
|
|
|
|
Technical Date

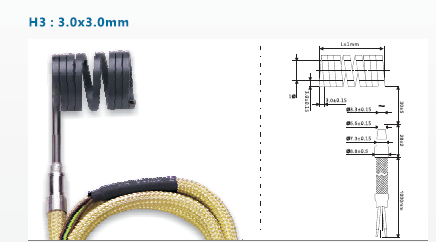

H3: 3.0*3.0mm的规格参数
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
315 |
270 |
45 |
200W |
|
385 |
340 |
45 |
250W |
|
455 |
410 |
45 |
300W |
|
535 |
490 |
45 |
350W |
|
595 |
550 |
45 |
400W |
|
675 |
630 |
45 |
450W |
|
735 |
690 |
45 |
500W |
|
805 |
760 |
45 |
550W |
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
875 |
830 |
45 |
600W |
|
995 |
950 |
45 |
700W |
|
1145 |
1100 |
45 |
800W |
|
1285 |
1240 |
45 |
900W |
|
1425 |
1380 |
45 |
1000W |
|
1845 |
1800 |
45 |
1100W |
|
1995 |
1950 |
45 |
1200W |
|
|
|
|
|
Technical Date

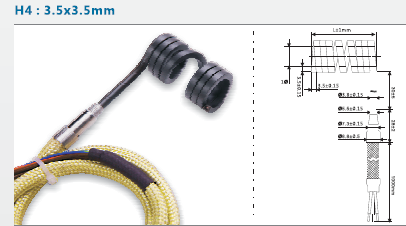

H4: 3.5*3.5mm的规格参数
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
315 |
270 |
45 |
200W |
|
385 |
340 |
45 |
250W |
|
455 |
410 |
45 |
300W |
|
535 |
490 |
45 |
350W |
|
595 |
550 |
45 |
400W |
|
675 |
630 |
45 |
450W |
|
735 |
690 |
45 |
500W |
|
805 |
760 |
45 |
550W |
|
总长/mm |
加热长度/mm |
不加热长度/mm |
功率（230V） |
|
Totallength |
Length of the heating coil |
Length of the unheated coil |
Power |
|
875 |
830 |
45 |
600W |
|
995 |
950 |
45 |
700W |
|
1145 |
1100 |
45 |
800W |
|
1285 |
1240 |
45 |
900W |
|
1425 |
1380 |
45 |
1000W |
|
1845 |
1800 |
45 |
1100W |
|
1995 |
1950 |
45 |
1200W |
|
|
|
|
|
常用截面功率配置参数表
|
内径 |
高 度 |
||||||||||||||||||
|
mm |
15 |
20 |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
140 |
160 |
180 |
200 |
220 |
240 |
260 |
|
|
10 |
|
|
|
200W |
250W |
250W |
300W |
300W |
350W |
350W |
400W |
400W |
450W |
450W |
500W |
500W |
550W |
550W |
|
|
12 |
|
|
150W |
200W |
250W |
250W |
300W |
350W |
350W |
400W |
400W |
450W |
450W |
500W |
550W |
600W |
600W |
600W |
|
|
13 |
|
|
200W |
250W |
300W |
300W |
350W |
350W |
400W |
450W |
500W |
500W |
550W |
600W |
600W |
700W |
800W |
800W |
|
|
14 |
|
|
200W |
250W |
300W |
300W |
350W |
400W |
450W |
450W |
500W |
500W |
550W |
600W |
700W |
800W |
800W |
900W |
|
|
15 |
|
|
200W |
250W |
300W |
300W |
350W |
400W |
450W |
500W |
550W |
600W |
600W |
700W |
700W |
800W |
900W |
900W |
|
|
16 |
|
|
200W |
250W |
300W |
350W |
400W |
450W |
500W |
500W |
600W |
600W |
700W |
700W |
800W |
900W |
900W |
900W |
|
|
18 |
|
|
250W |
300W |
350W |
400W |
450W |
500W |
500W |
550W |
600W |
700W |
700W |
800W |
800W |
900W |
900W |
1000W |
|
|
19 |
|
|
250W |
300W |
350W |
400W |
450W |
500W |
500W |
550W |
600W |
700W |
800W |
800W |
900W |
900W |
1000W |
1000W |
|
|
20 |
|
|
300W |
300W |
350W |
400W |
450W |
500W |
550W |
600W |
600W |
700W |
800W |
800W |
900W |
1000W |
1000W |
1100W |
|
|
22 |
|
200W |
300W |
350W |
400W |
450W |
450W |
500W |
600W |
600W |
700W |
800W |
800W |
900W |
900W |
1000W |
1100W |
1100W |
|
|
25 |
|
250W |
350W |
400W |
450W |
450W |
500W |
600W |
600W |
700W |
800W |
800W |
900W |
900W |
1000W |
1000W |
1100W |
1100W |
|
|
27 |
|
250W |
350W |
400W |
450W |
500W |
600W |
600W |
700W |
700W |
800W |
900W |
900W |
1000W |
1000W |
1100W |
1200W |
1200W |
|
|
30 |
200W |
300W |
400W |
450W |
500W |
550W |
600W |
700W |
700W |
800W |
800W |
900W |
10000W |
1100W |
1200W |
1300W |
1500W |
|
|
|
32 |
200W |
300W |
450W |
500W |
500W |
600W |
700W |
700W |
800W |
900W |
900W |
10000W |
1100W |
1200W |
1300W |
1500W |
|
|
|
|
35 |
200W |
300W |
500W |
600W |
600W |
700W |
800W |
800W |
900W |
900W |
900W |
1000W |
1100W |
1200W |
1300W |
1500W |
|
|
|
|
38 |
250W |
350W |
500W |
600W |
600W |
700W |
800W |
900W |
900W |
900W |
1000W |
1100W |
1200W |
1300W |
1500W |
1500W |
|
|
|
|
40 |
250W |
350W |
550W |
600W |
700W |
700W |
800W |
900W |
900W |
900W |
10000W |
1100W |
1200W |
1300W |
1500W |
1500W |
|
|
|
|
42 |
250W |
400W |
550W |
600W |
700W |
700W |
800W |
900W |
900W |
1000W |
1000W |
1100W |
1200W |
1500W |
1500W |
1500W |
|
|
|
|
45 |
300W |
400W |
600W |
600W |
700W |
800W |
900W |
900W |
10000W |
10000W |
1100W |
1200W |
1300W |
1500W |
|
|
|
|
|
|
50 |
300W |
450W |
600W |
700W |
800W |
900W |
10000W |
1200W |
1300W |
1500W |
|
|
|
|
|
|
|
|
|

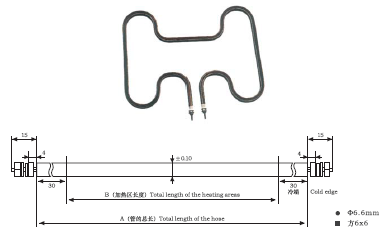

双头加热管（分流板加热管）
SH1 SH2
|
加热元件表面温度（最大值） |
700℃ |
|
电压 |
230V |
|
功率误差（未加热） |
±5%-10% |
|
高压温度（未加热） |
1500V |
|
绝缘电阻（未加热） |
≥1.5M |
|
泄漏电流（未加热）253V |
≥0.5MA |
|
最长直条长度 |
3000MM |
|
长度误差 |
±3MM |
|
不加热长度 |
两端各300MM±5MM |
|
冷却不可转弯数值 |
两端各40MM±2MM |
|
最小弯曲半径（内R） |
R10MM |
可根据客户需求订做各种规格型号的加热器
