TMS-001
TMS-001
Functions:
1. Operating voltage is 200VAC -240VAC, frequency is 50HZ-60HZ.
2. Control mode: manual control and automatic control, for your options.
3. Two control time, T1 and T2. T1 is the time for starting sprue while T2 is the time to delay the opening of sprue.
4. Time adjustment range: 0--999.9s.
5. Input signal: 220VAC, 110VAC, 24VDC (injection output by injection machine) or switching signal, for your options.
The signal wires are able to be connected at random, that is either positive, negative, or firing line or null line.
6. Output control voltage: 220VAC, 110VAC and 24VDC, for your options.
7. Output control: by air valve or oil valve, for your options.
8. Operating mode: Mode B.
Technical Parameters
|
Items |
|
|
Voltage |
185V-250VAC |
|
Frequency |
50HZ-60HZ |
|
Operating Temperature |
-20 ℃ -60 ℃ |
|
Storage Temperature |
-30 ℃ -70 ℃ |
|
Fuse Specification |
3A, 6mm × 30mm, 1 ‰ sec |
|
Input Signal |
24VDCor switching signal |
|
Output Voltage |
12VDC, 24VDC, 110VAC, 220VAC |
|
Output control |
Air valve or oil valve |
|
Control Time |
T1, the time to start sprue; T2, the time to delay the opening of sprue |
|
Time Accuracy |
0.1s |

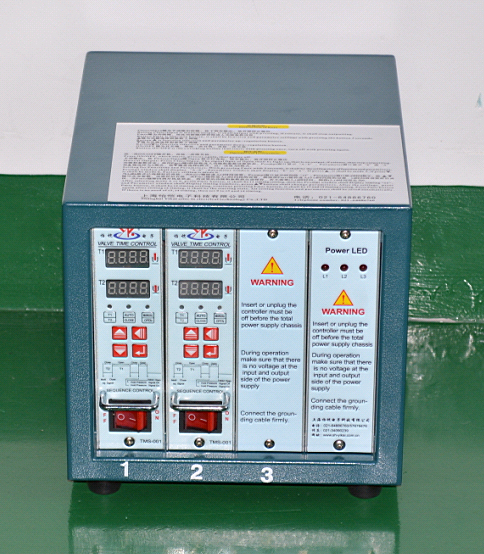

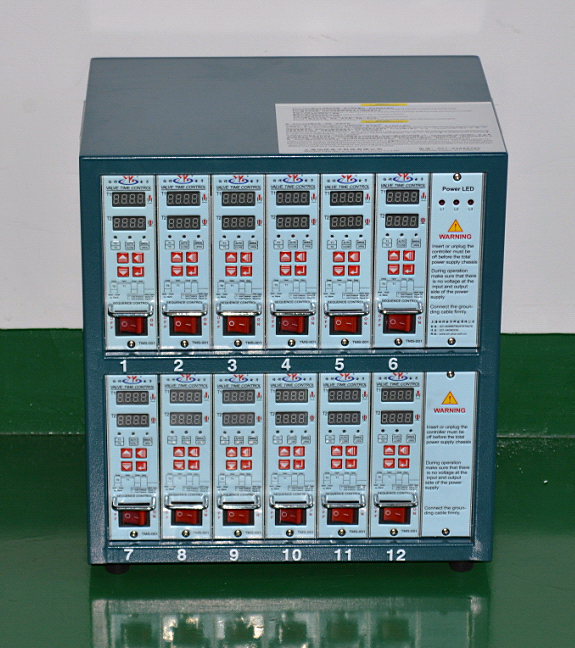

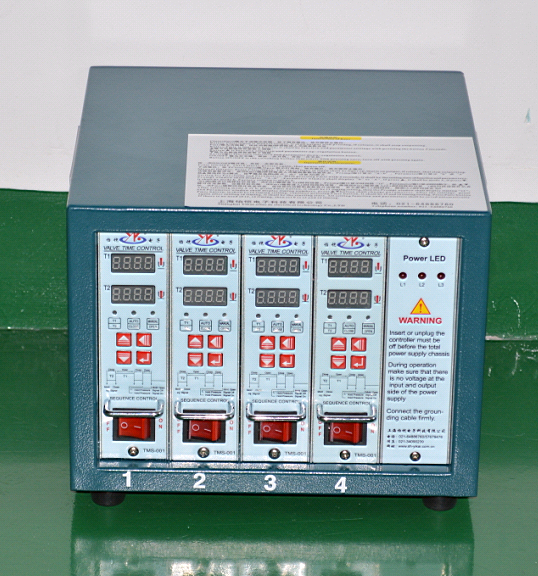

Product Photos
TMS-001-2 TMS-001-4 TMS-001-6 TMS-001-12
L245*305*H240 L295*W305*H240 L400*W305*H240 L400*W305*H445
The aforementioned are normally used types. Time schedule controller is able to be customized based on your demands.
