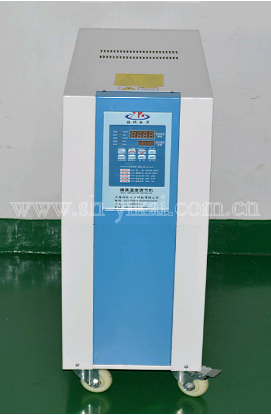

180℃ Single-temperature Water Temperature Machine
Features
1. This water temperature machine is a kind of mold temperature machine, which is rather compact and tiny. The machine integrates heating device, cooling device, media cycle device and dual-temperature machine.
2. Since this machine is able to directly cool down, so that it can deal with the large quantity of thermal load given out by the molds.
3. This machine uses a water pump with high pressure and large flowrate, so that the narrow waterway of the mold is able to get large flowrate, which makes the machine control the temperature evenly.
4. All pipes and components are made of stainless steel (SUS304), all interfaces are sealed by high temperature sealant; so that the sealing is rather good and the service life is to be longer.
5. The hot oil of this mold temperature machine is water, whose highest control temperature is 120℃.
6. Microcomputer is used for the control, where there is equipped with a newest controller having the functions of appointment start-up, operation shutdown and alarming. PID control is used, non-contact SSR solid-state relay is used for heating. In this case, the machine is able to have a highly accurate temperature control and long service life. What’s more, the temperature set and display is in the way of numbers. Additionally, a standard timer (99 hours and 59 minutes) is equipped. Remote control via basal plate is available, which is able to start or stop input connections and trigger alarming output connections.
7. The power master switch of this machine has the function of interlock. That is when the heat loss is more than 130℃, the master switch will get a signal to disconnect automatically.
8. The machine has the function of high pressure protection, by which the explosion caused by high pressure inside will be avoided.
Alarming Protection :
1. Anti-phase alarm.
2. Alarm of insufficient media (water).
3. Alarm of overload.
4. Over temperature alarm and power-off protection.
5. Low temperature alarm.
6. High pressure protection.
180℃ Water Temperature Machine
Technical Parameter
|
Items |
YK-HW180-9KW/12KW |
YK-HW180-24KW |
||||
|
media operating temperature |
Clean water |
|||||
|
operating temperature |
180 |
|||||
|
control mode |
PID control |
|||||
|
heating tube |
Capacity （kw） |
9 |
24 |
|||
|
Control method |
SSR control |
|||||
|
Media pump |
Sealing method |
Non-shaft seal |
||||
|
Motor power （HW/50Hz |
1.1 |
3 |
||||
|
Max. Pressure （MPa） |
0.57 |
0.78 |
||||
|
Max. Flowrate （L/min） |
55 |
128 |
||||
|
Full head （m） |
57 |
78 |
||||
|
Booster pump |
Type |
Magnetic plunger pump |
||||
|
Motor power （KW/50Hz） |
0.048 |
|||||
|
Max. Pressure （MPa） |
1.5 |
|||||
|
Max. Flowrate （L/min） |
0.65 |
|||||
|
Cooling method |
Direct cooling down |
|||||
|
Cooling capacity （KW×）△t=30℃） |
7.3 |
|||||
|
Pipe diameter |
Recycling |
3/8（10A）×4 loop |
3/8（10A）×4 loop |
|||
|
Cooling |
4’（15A） |
6’（20A） |
||||
|
Alarm |
Anti-phase alarm, alarm of insufficient media, overload alarm, upper temperature limit alarm, super heating alarm |
|||||
|
Utility |
Power supply voltage |
AC 200V/60Hz 380V/50Hz 4150V/50Hz 3P+E(5m) , able to be customized based on actual situation. |
||||
|
Capacity of master air switch （380V220V）（A） |
20/32 |
32/40 |
||||
|
Total power capacity （KW）(50Hz) |
7.05 |
10.05 |
||||
|
Qty. of cooling water （L/min） |
15 |
|||||
|
Pressure of cooling water （MPa） |
0.2-0.5 |
|||||
|
Dimension (length*width* height) |
630*250*720 |
790*320*850 |
||||
|
Weight （Kg） |
75 |
110 |
||||
|
|
|
|
|
|
|
|
The aforementioned are normally used machines. Customization is able to be done based on your demands.
