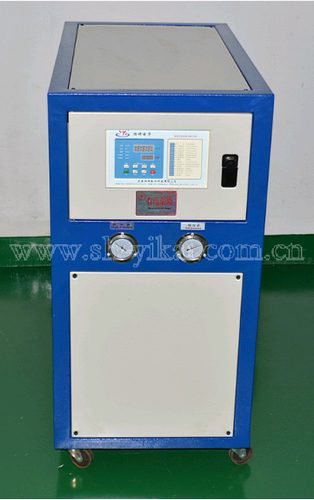

Water-cooled Industrial Chiller
Water-cooled Industrial Chiller
Features
1. The air compressor is imported from Europe, America and Japan; inside the machine, there is equipped with protective device; the machine is with low noise, energy-saving and durable.
2. As for throttling parts, expansion valves produced by ALCO are applied.
3. High efficient heat exchanger, evaporator and condenser are used, which are able to save at least 30% energy.
4. As for water tank, tubes and water pumps, SUS304 stainless steel is used, which is corrosion resistant, pressure resistant and durable.
5. Micro-computer control system is applied, which is able to control the whole machine automatically; so that real-time monitoring can be realized. Besides, the machine is in good stability, high accuracy and less defaults.
6. Protection alarms for insufficient media, abnormal pressure (high pressure or low pressure) of chiller, over load (compressor, water pump and fan), abnormal freezing, upper limit of media temperature, lower limit of media temperature, disconnection of temperature probe and anti-phase etc., as well as high temperature alarm and low temperature alarm;
Technical Parameter for Water-cooled Chiller
|
|
YK-CWS-3 |
YK-CWS-5 |
YK-CWS-8 |
YK-CWS-10 |
YK-CWS-15 |
YK-CWS-20 |
YK-CWS-30 |
||||
|
Media temperature range |
3-25℃ |
||||||||||
|
Media |
Clean water /Water/ clean water |
||||||||||
|
Cooling capacity （KW×50Hz） |
10℃ |
7.5 |
12.6 |
20.5 |
26.5 |
41.5 |
53 |
83 |
|||
|
15℃ |
9 |
14.8 |
24 |
31 |
49 |
62 |
98 |
||||
|
Compressor |
Rated output （KW） |
2.6 |
3.7 |
6 |
7.5 |
10.5 |
7.5×2 |
10.5×2 |
|||
|
Capacity control |
100-50-0% |
||||||||||
|
Cold media |
R22 |
||||||||||
|
Evaporator |
Type |
Stainless steel plate-type evaporator |
|||||||||
|
Condenser |
high efficient shell & tube type |
||||||||||
|
Water tank volume （L） |
65 |
120 |
200 |
250 |
300 |
||||||
|
Media pump |
Rated output （KW） |
0.65 |
0.84 |
2.2 |
3 |
4 |
|||||
|
Max. pressure（MPa） |
0.43 |
0.35 |
0.47 |
0.4 |
0.36 |
||||||
|
Max. flowrate（L/min） |
|
100 |
233 |
383 |
633 |
||||||
|
Cooling water pump |
Rated output （KW） |
|
1.1 |
||||||||
|
Max. pressure（MPa） |
0.1 |
||||||||||
|
Max. flowrate（L/min） |
645 |
||||||||||
|
Pipe diameter |
Media inlet and outlet |
25A |
40A |
50A |
65A |
||||||
|
Cooling water inlet and outlet |
25A |
40A |
50A |
65A |
|||||||
|
Water compensation for water tank |
15A |
||||||||||
|
Water tank overflow |
25A |
||||||||||
|
Water tank discharge |
25A |
||||||||||
|
Chassis discharge |
25A |
||||||||||
|
Engineering condition |
Quantity of cooling water （L/min） |
50 |
76 |
115 |
139 |
206 |
279 |
417 |
|||
|
weight （Kg） |
225 |
245 |
325 |
345 |
465 |
665 |
1000 |
||||
|
capacity （KW） |
3.3 |
4.6 |
8.3 |
9.8 |
12.8 |
18 |
26.1 |
||||
|
Breaker capacity （AT） |
15 |
20 |
32 |
50 |
63 |
100 |
|||||
|
Power voltage |
AC380V/50Hz 3 3W |
||||||||||
|
Alarm device |
For insufficient media, abnormal pressure (high pressure or low pressure) of chiller, over load (compressor, water pump and fan), abnormal freezing, upper limit of media temperature, lower limit of media temperature, disconnection of temperature probe and anti-phase
|
||||||||||
|
Size （W×D×Hmm） |
1020*600*1048 |
1250*700*1120 |
1400*850*1345 |
1800*1000*1400 |
2000*1100*1480 |
||||||
|
Paint color |
Daily paint worker Y15-85A half color |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
