Heavy load connector
Heavy load connector
5-core heavy load connector (250V, 10A)
|
Name |
Spec. |
Appearance |
Dimension |
|

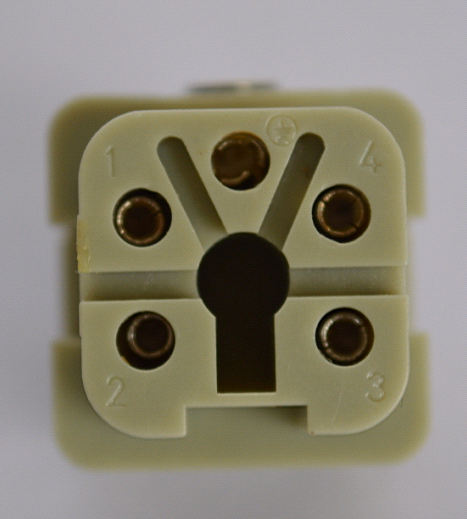

Female core |
YK5-10A-F |
|
|
|

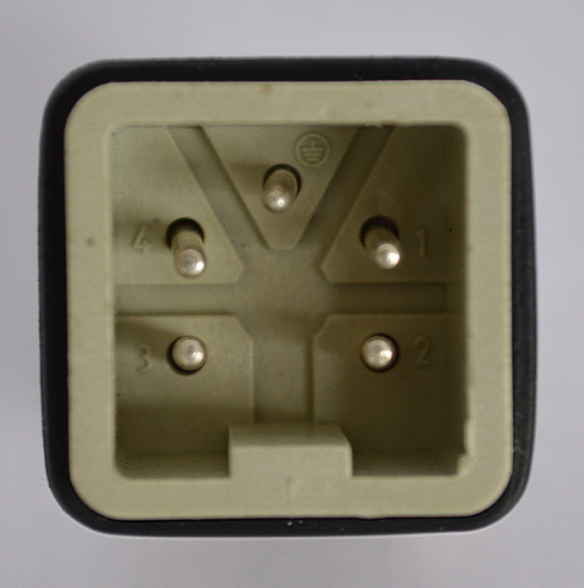

Male core |
YK5-10A-M |
|
|
|

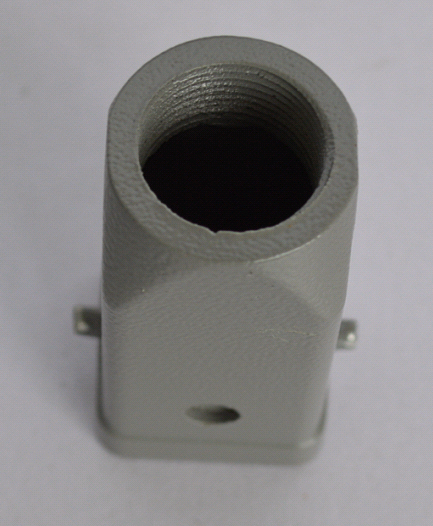

top cabinet |
YK5-10A-OTE-2B-PG11 (seal joint PG11) |
|
|
|

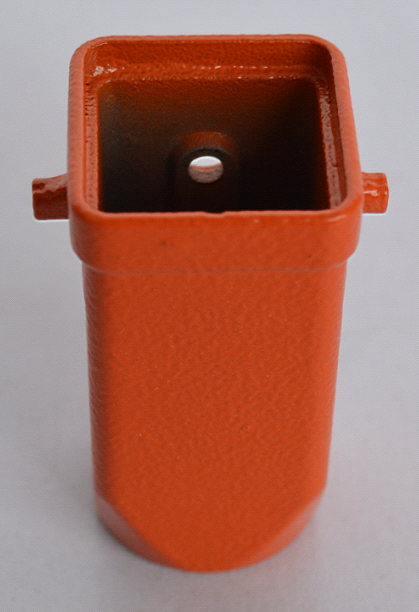

Top cabinet |
YK5-10A-GTE-2B-PG11 (seal joint PG11) |
|
|
|

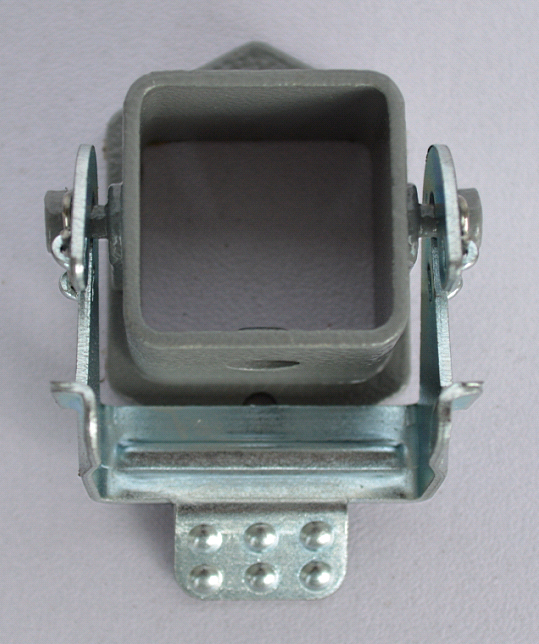

Base |
YK4-10A-OBK-1L
|
|

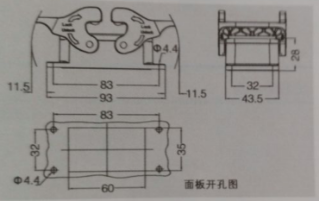

Drawing of panel cut-out |
|

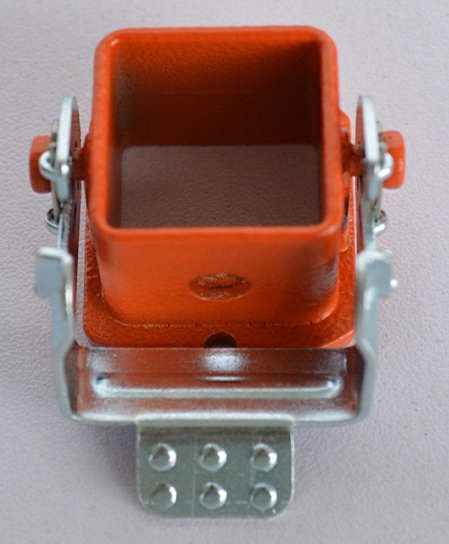

Base |
YK4-10A-GBK-1L
|
|
10-core heavy load connector (500V,16A)
|
Name |
Spec. |
Appearance |
Dimension |
|
Female core |
YK10-16A-F |
|
The maximal distance between two connectors is 21mm. |
|
Male core |
YK10-16A-M |
|
|
|
top cabinet with double fastening |
YKIO-16A-OTE-2B-PG29 Seal joint PG29 |
|
|
|
Top cabinet with double fastening |
YKIO-16A-GTE-2B-PG29 Seal joint PG29 |
|
|
|
Top cabinet with single fastening |
YKIO-16A-OTE-1B-PG29 seal joint PG29 |
|
|
|
Top cabinet with single fastening |
YKIO-16A-GTE-1B-PG29 Seal joint PG29 |
|
|
|
Base with double fastening |
YKIO-16A-OBK-2L |
|
Drawing of panel cut-out |
|
Base with double fastening |
YKIO-16A-GBK-2L |
|
|
|
Base with single fastening |
YKIO-16A-OBK-1L |
|
|
|
Base with single fastening |
YKIO-16A-GBK-1L |
|
|
|
Base with single fastening |
YKIO-16A-GBK-1L-MCV |
|
Drawing of panel cut-out |
16-core heavy load connector （500V,16A）
|
Name |
Spec. |
Appearance |
Dimension |
|
Female core |
YK16-16A-F |
|
|
|
Male core |
YK16-16A-M |
|
|
|
Top cabinet with double fastening |
YK16-16A-OTE -2B-1G29 Seal joint PG29 |
|
|
|
Top cabinet with double fastening |
YK16-16A-GTE -2B-1G29 Seal joint PG29 |
|
|
|
Top cabinet with double fastening |
YK16-16A-GTE -2B-1G21 Seal joint PG21 |
|
|
|
Top cabinet with double fastening |
YK16-16A-GTE -2B-2PG21 Two seal joints PG21 |
|
|
|
Top cabinet with single fastening |
YK16-16A-OTE -1B-PG29 Seal joint PG29 |
|
|
|
Top cabinet with single fastening |
YK16-16A-GTE -1B-PG29 Seal joint PG29 |
|
|
|
Base with double fastening |
YK16-16A-OBK -2L |
|
Drawing of panel cut-out |
|
Base with double fastening |
YK16-16A-GBK -2L |
|
|
|
Base with single fastening |
YK16-16A-OBK -1L |
|
Drawing of panel cut-out |
|
Base with single fastening |
YK16-16A-GBK -1L |
|
|
|
Base with single fastening |
YK16-16A-GBK -1L-MCV |
|
Drawing of panel cut-out |
16-core heavy load connector (250V,10A)
|
Name |
Spec. |
Appearance |
Dimension |
|
Female core |
YK16-10A-F |
|
|
|
Male core |
YK16-10A-M |
|
|
|
Top cabinet with single fastening |
YK16-10A-OTE Seal joint PG16 |
|
|
|
Top cabinet with single fastening |
YK16-10A-GTE Seal joint PG16 |
|
|
|
|
|
|
|
|
Base with single fastening |
YK16-10A-OBK
|
|
Drawing of panel cut-out |
|
Base with single fastening |
YK16-10A-GBK
|
|
24-core heavy load connector
|
Name |
Spec. |
Appearance |
Dimension |
|
Female core |
YK24-16A-F |
|
|
|
Male core |
YK24-16-M |
|
|
|
Top cabinet with double fastening |
YK24-16A-OTE -2L Seal joint PG29 |
|
|
|
Top cabinet with double fastening |
YK24-16A-GTE -2L Seal joint PG29 |
|
|
|
Top cabinet with double fastening |
YK24-16A-GTE -2L Seal joint PG21 |
|
|
|
Top cabinet with single fastening |
YK24-16A-OTE -1L Seal joint PG29 |
|
|
|
Top cabinet with single fastening |
YK24-16A-GTE -1L Seal joint PG29 |
|
|
|
Base with double fastening |
YK24-16A-OBK -2L |
|
Drawing of panel cut-out |
|
Base with double fastening |
YK24-16A-GBK -2L |
|
|
|
Base with single fastening |
YK24-16A-OBK -1L |
|
Drawing of panel cut-out |
|
Base with single fastening |
YK24-16A-GBK -1L |
|
