YK-E-15A
YK-E-15A

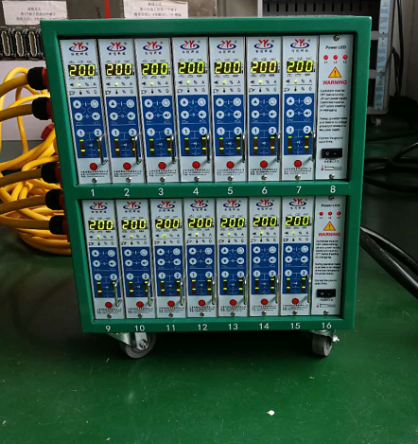

6 panels temperature controller
30 panels temperature controller
Function
1. One controller controls two heating zones, reducing the size of the chassis and saving space.
2. Automatic environmental temperature linear compensation, so that the controller's temperature value is more accurate.
3. Automatic cold junction compensation for thermocouples to avoid relative errors due to ambient temperature changes.
4. Alarm protection function:
Short circuit alarm of hot runner power line or heater
Hot runner temperature line short-circuit alarm
The broken circuit alarm of hot runner power line or heater
Temperature cable disconnection alarm of hot runner
Misconnection alarm of hot runner power line and thermocouple
Reverse connection alarm of wire positive and negative polarity
High temperature alarm
Low temperature alarm
SCR damage alarm
Fuse damage alarm
Alarm information table Technical parameter table Function parameter
factory setting
Thermocouple broken
Voltage
185-250VAC
Type of thermocouple
type J
Power
frequency
50-60HZ
High temperature alarm upper limit
30℃
Reverse connection of thermocouple
Operating temperature
-20—60℃
Low
temperature alarm lower limit
-30℃
Storage temperature
-30—70℃
Temperature unit
℃
The broke circuit of thermocouple
Fuse specification
16A10×38mm
Control mode
PIDD
Thermocouple
J/K adjustable
Soft-start mode
ON
Heater or connection line broken
Temperature range
45—537℃
Sampling speed
0.1S
The broken circuit of heater or connection line
Temperature measurement accuracy
0.1℃
Temperature controlling accuracy
±0.5℃
Fuse damage
Control mode
PIDD/PID
Output power
0—3.6KW
SCR damage alarm
