Cool and hot machine
Cool and hot machine

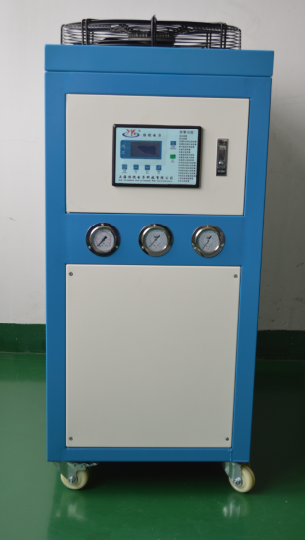

wind-cooling cool and hot machine
water-cooling cool and hot machine
Characteristics:
1、Combined with refrigeration and heating, the water temperature can be controlled at any temperature point between 3 -90℃
2、 Adopting compressors imported from Europe, America and Japan, built-in safety protection, low noise, power saving and durability;
3、 The throttling component adopts American Accel expansion valve;
4、 Energy-efficient heat ex-changers, evaporators and condensers, can save more than 30% of energy;
5、 Water tank, pipe and water pump are made of SUS304 stainless steel, which has the advantages of corrosion resistance, pressure resistance and durability.
6、 Microcomputer control system, automatic control of the whole machine operation, real-time monitoring machine running condition, stable, high precision, low failure;
7、 With the lack of media, abnormal pressure of refrigerators (excessive or too low), overload (compressor, pump, fan), freezing anomaly, upper limit of media temperature, media temperature limit, temperature probe broken line, inverse equal protection alarm.
Technical parameter table
Type
Project
YK-CH-3
YK-CH-5
YK-CH-8
YK-CH-10
YK-CH-15
YK-CH-20
Media
Water
Media temperature range（℃）
3-90℃
Cooling capacity（KW）
9.0
14.8
24.0
31.0
49
62
Water tank capacity（L）
70
70
135
135
210
250
Compressor
（KW）
2.25
3.75
6.0
7.5
10.5
7.5×2
Refrigerant
R-22
Media
pump
Power
（KW）
0.55
1.10
2.20
3.0
3.0
3.0
Maximum
capacity（L/min）
58
116
180
266
266
400
Maximum pressure
（MPa）
0.46
0.44
0.49
0.47
0.47
0.4
Heater
（KW）
6
9
12
12
12
20
Cooling-water
capacity（L/Min）
50
76
115
139
206
279
Total electricity capacity （KW）
9.38
14.63
22.05
24.35
27.08
39.6
Voltage
AC380V/50Hz 3P+E
Dimension
（LXWXH）（mm）
1200*660*1395
1350*800*1695
1650*1000*1740
2000*1100*1855
Weight
（Kg）
450
500
700
750
935
1600
The cooling capacity means that the cooling water inlet temperature is 30°C at a cold water temperature of 7°C. Cooling water outlet 35°C
